ENYECONTROLS Life and Property Safety System
Stairwell Pressurization Control and Monitoring System (EC-SPCMS) · Smoke Extraction System (EC-SES) · Fire and Smoke Protection System (EC-FSPS) · Fireman's Control Panel (EC-FCP)

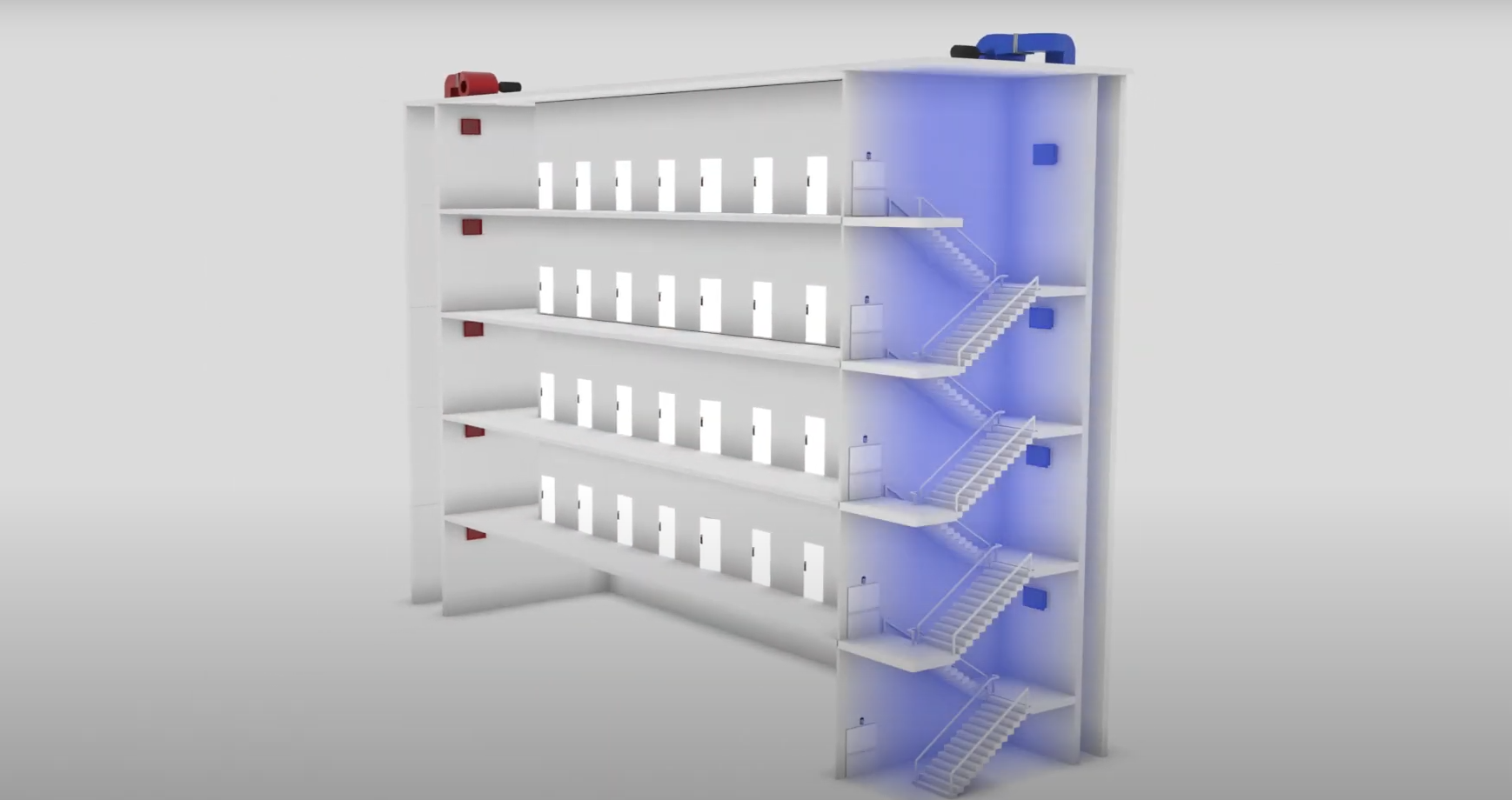

Stairwell Pressurization Control and Monitoring System (EC-SPCMS)
The Enyecontrols Stairwell Pressurization System (EC-SPCMS) is specifically designed to control and monitor differential pressure between the stairway and inside of the building. This is to ensure positive pressure in the stairway, thus, assuring safe passage of the building tenants during a fire emergency. The intelligent stand-alone controller measures the differential pressure and then controls (on/off or via VFD interface) the stairwell pressurization fan in order to meet the required set point. Differential pressure readings and set point values can be seen in the LCD display of the controller for monitoring and recording purposes.
Our technology emphasizes flexibility allowing our system to adapt to the design and user requirements. Programs for the control's parameters and user's interface can only be accessed by authorized personnel.

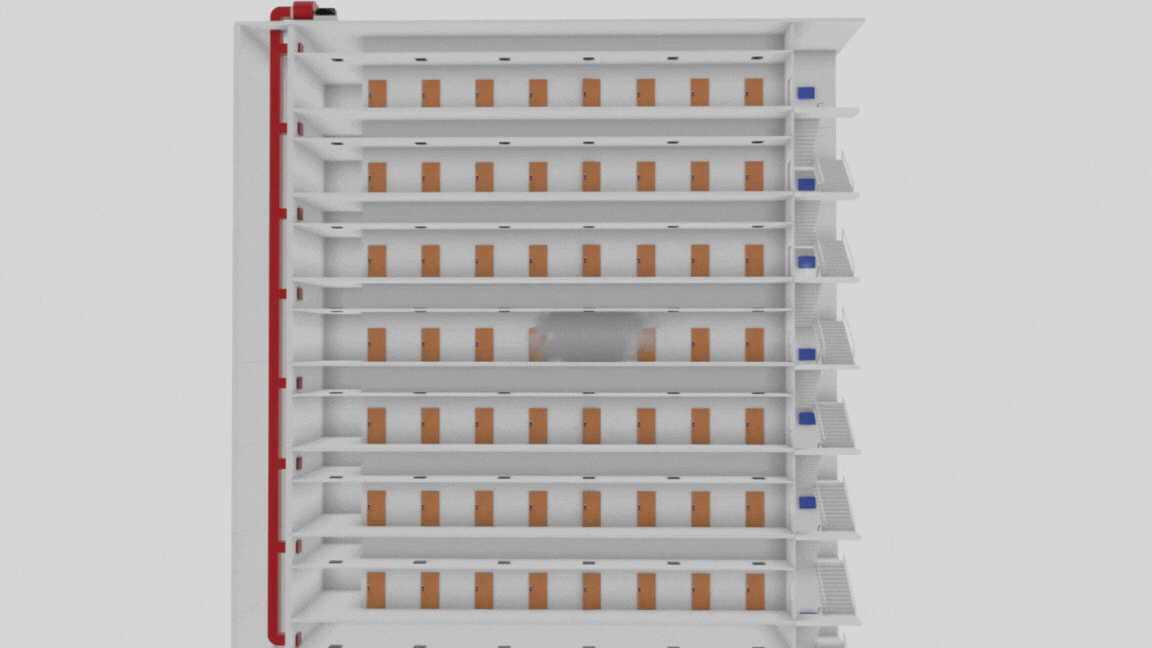

Smoke Extraction System (EC-SES)
The Enyecontrols Smoke Extraction System (EC-SES) is specifically designed to extract large quantities of smoke and poisonous fumes for building tenants and fire rescuers to have clear access through the escape routes. During fire mode, the system moves the smoke extraction dampers to a safety position as per designed either in closed or in an open position and simultaneously turns on the smoke extraction fans. With an intelligent controller that can receive a BACNet or HLI signal from any Fire Detection Alarm System complete with high operating and holding torque and fast running spring return actuators, the system offers reliability while also satisfying the products and testing regulations.
Our technology emphasizes flexibility allowing our system to adapt to the design and can be tailor-fitted as per specific requirements.

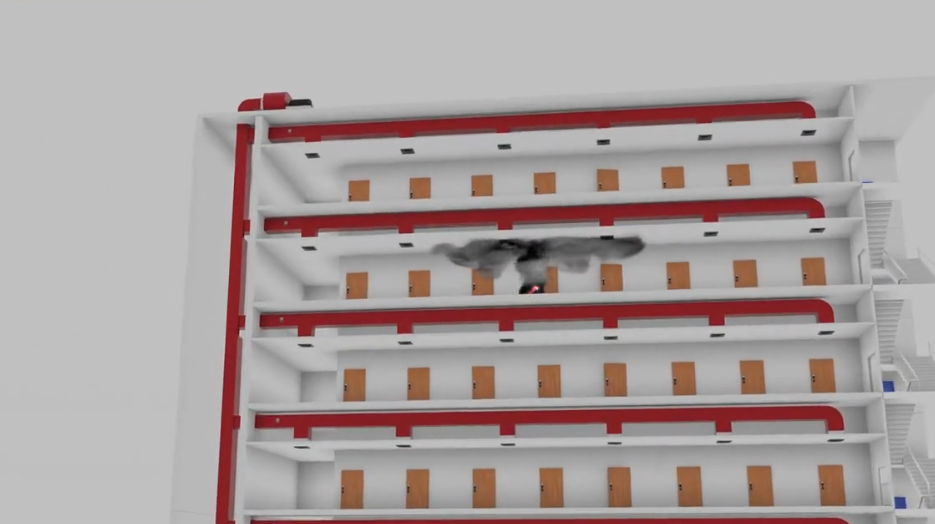

Fire and Smoke Protection System (EC-FSPS)
The Enyecontrols Fire and Smoke Protection System (EC-FSPS) is specifically designed to prevent fire and smoke from passing through the building's air duct which can endanger lives and properties as well. During fire mode, the system moves the fire and smoke dampers to a safety position as per designed - either in closed or open position.
With an intelligent controller that can receive a BACNet/HLI signal from any Fire Detection and Alarm System complete with high operating and holding torque and fast running spring return actuators, the system offers reliability while also satisfying the products and testing regulations.
Our technology emphasizes flexibility allowing our systems to adapt to the design and can be tailor-fitted as per specific requirements.
Fireman's Control Panel (EC-FCP)
Enyecontrols Fireman's Control Panel's (EC-FCP) intention is to activate and monitor a quick emergency response system during fire mode to ensure proper and safe egress of all tenants.
The EC-FCP system can immediately identify the critical data and override all connected systems. For life and property safety system it is the central hub of operation.
During normal condition, the system can be used to routinely perform functionality tests of Stairwell Pressurization, Smoke Extraction, Fire and Smoke Protection Systems.
